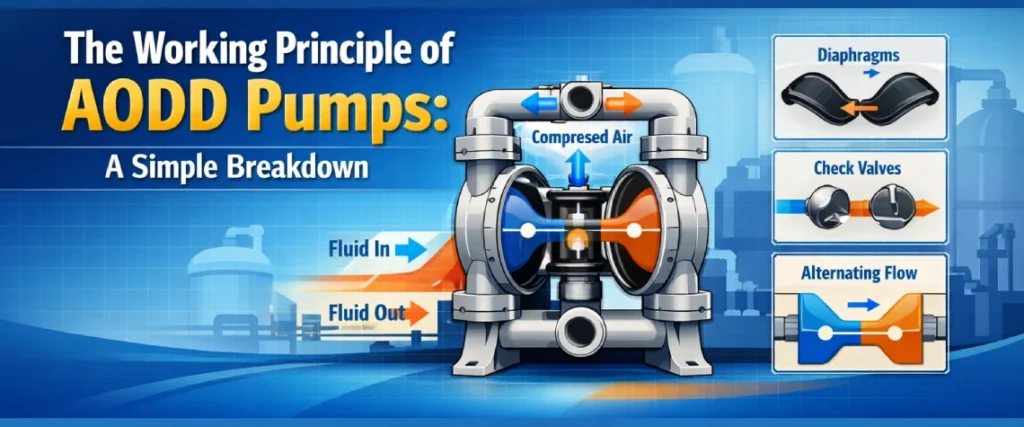

AODD Pumps Working Principle
At UK PUMP & EQUIPMENTS, we stand as premier agitator mixer manufacturers. Our commitment is to engineering excellence. We also specialize in robust fluid transfer technology. Understanding the AODD Pumps Working Principle is key for many industries. This knowledge ensures optimal pump selection and performance. Air Operated Double Diaphragm Pumps offer unique advantages. They handle tough fluids with gentle efficiency. Let’s break down their operation simply.
What is an Air Operated Double Diaphragm Pump?
An Air Operated Diaphragm Pump is a type of positive displacement pump. It uses compressed air as its power source. Two flexible diaphragms perform the pumping action. These diaphragms move back and forth in unison. Consequently, they create a pumping cycle that is both powerful and self-priming. This design makes the pump incredibly versatile and safe.
Moreover, the pump can run dry without immediate damage. It also handles viscous and abrasive slurries effectively. Therefore, industries from chemical to food processing rely on these pumps. Their simple yet effective design minimizes maintenance needs. Leading AODD pump manufacturers focus on diaphragm material innovation. This ensures compatibility with diverse fluids.
The Core Components: A Closer Look
Understanding the key parts clarifies the overall function. Several components work together seamlessly. Each part has a critical role in the pumping process.
1. The Diaphragms
The diaphragms are the heart of the pump. Typically, they are made from elastomers or thermoplastics. Material choice depends on the fluid’s chemical properties. The diaphragms flex back and forth. This action creates the pumping chambers’ volume change.
2. The Air Valve System
This is the pump’s brain. It directs compressed air alternately to the back of each diaphragm. The air valve shifts automatically. It uses the movement of the diaphragms themselves to trigger its action. This creates a continuous, self-sustaining cycle.
3. The Pump Chambers
These chambers house the fluid being pumped. Each chamber has inlet and outlet ball valves. The diaphragms define the chamber walls. Their movement changes the chamber pressure. This pressure change opens and closes the ball valves.
4. The Ball Valves
Two sets of ball valves exist per chamber. Inlet valves allow fluid into the chamber. Outlet valves let fluid exit toward the discharge port. The balls lift and seat based on pressure differentials. This ensures fluid flows in one direction only.
A Step-by-Step Cycle Breakdown
The AODD pumps working principle relies on a repeated two-stroke cycle. The process is elegant in its simplicity. Here is a simple breakdown of one complete cycle.
Stroke One: Diaphragm A Discharges, Diaphragm B Intakes
First, compressed air pushes against the back of Diaphragm A. Therefore, Diaphragm A moves inward into its fluid chamber. This pressurizes Chamber A. Consequently, the fluid inside Chamber A is forced out. It pushes past the outlet ball valve and exits the pump.
Simultaneously, this same air motion pulls Diaphragm B outward. So, Chamber B expands and its pressure drops. This creates a vacuum or suction effect. Hence, fluid is drawn into Chamber B. It pushes open the inlet ball valve to fill the space. The outlet valve in Chamber B remains shut.
Stroke Two: The Shift
At the end of Stroke One, the air valve mechanism triggers. It senses the diaphragm’s position. Immediately, it redirects the compressed air source. Now, air pressure is applied to the back of Diaphragm B.
Stroke Three: Diaphragm B Discharges, Diaphragm A Intakes
Now, the process reverses seamlessly. Compressed air pushes Diaphragm B inward. So, Chamber B pressurizes and discharges its fluid. Meanwhile, Diaphragm A is pulled outward. Thus, Chamber A creates suction and draws in new fluid. This completes one full cycle.
Subsequently, the cycle repeats itself automatically. It continues as long as air supply is present. The pump’s speed directly responds to air flow. Increasing air pressure or volume raises the pumping rate.
Why the Design is So Effective
The AODD pumps working principle confers major benefits. This explains its widespread industrial adoption. Key advantages stem from its unique operating method.
1. Inherent Safety
The pump uses compressed air, not electricity. This eliminates spark risks in hazardous areas. Furthermore, if discharge becomes blocked, the pump simply stalls. It will not build dangerous pressure or overheat. It restarts once the blockage clears.
2. Exceptional Versatility
AODD pumps handle an astonishing fluid range. They manage thin solvents and thick pastes with equal ease. Additionally, they pump sensitive fluids gently. The diaphragms isolate the fluid from the air supply. This prevents contamination or dilution.
3. Self-Priming and Dry-Run Capability
These pumps create strong suction lift. They can prime themselves from several meters below. Importantly, they can run dry for extended periods. This protects against damage from accidental run-dry events.
4. Portability and Simplicity
Air Operated Diaphragm Pumps are often lightweight. They require no complex electrical connections. This makes them perfect for remote or temporary sites. Their simplicity also means easier maintenance. Generally, only basic tools are needed for service.
Selecting the Right Materials with Expert Manufacturers
Choosing the correct pump is crucial for longevity. The fluid characteristics dictate material selection. Reputable AODD pump manufacturers guide this choice. They ensure compatibility and optimal performance.
1. Diaphragm Material Options
Diaphragms are available in various materials. For example, Nitrile rubber suits oils and fuels. Meanwhile, PTFE handles aggressive acids and solvents. EPDM is excellent for hot water and mild chemicals. EPDM is excellent for hot water and mild chemicals. The right choice prevents premature failure.
2. Body and Valve Materials
Pump bodies can be cast iron, stainless steel, or plastics. Aluminum offers a light-weight option for general use. Stainless steel provides corrosion resistance. Polypropylene or PVDF bodies handle highly corrosive chemistries. Ball and seat materials also vary. They include stainless steel, ceramic, or specialized plastics.
Applications Across Industries
The robust AODD pumps working principle enables diverse uses. Nearly every sector finds value in these pumps. Their reliability makes them a first choice.
1. Chemical and Paint Industries
They transfer solvents, resins, adhesives, and pigments. Their sealless design prevents leaks of hazardous materials. Moreover, they handle abrasive fillers without issue.
2. Food and Beverage Processing
Sanitary AODD pumps move creams, sauces, and food additives. They maintain product integrity without shear damage. Furthermore, they meet strict hygiene standards easily.
3. Wastewater and Dewatering
These pumps excel at moving sludge and slurries. They handle solids in suspension without clogging. Therefore, they are ideal for sump emptying and tank dewatering.
4. Pharmaceutical and Cosmetics
They provide gentle transfer for sensitive formulations. The pumps offer clean-in-place capabilities. Consequently, they support batch integrity and product purity.
Maintenance Insights for Long Service Life
AODD pumps are famously low-maintenance. However, simple care extends their service life significantly. Following a basic routine prevents unexpected downtime.
1. Regular Inspection Points
Check diaphragms periodically for cracks or wear. Listen for changes in pump cycle rhythm. Inspect inlet and outlet ball valves for debris or wear. Also, ensure the air supply is clean and dry.
2. Common Wear Parts
The diaphragms and ball valves are typical wear components. Fortunately, they are easy and inexpensive to replace. Keeping a spare kit for these parts is wise. This minimizes operational disruption during service.
3. Optimizing Air Supply
Use a regulator and filter-lubricator unit. Clean, dry air at the correct pressure is vital. It ensures smooth air valve operation and maximum efficiency. Proper lubrication of the air valve also reduces wear.
UK PUMP & EQUIPMENTS: Your Partner in Pumping Solutions
As leading agitator mixer manufacturers, we understand process engineering. We also recognize the critical role of fluid transfer. Our expertise extends to recommending the perfect pump. We partner with top AODD Pump Manufacturers to supply quality pumps.
We provide pumps built for durability and performance. Our team helps select the right materials and size. We ensure the pump matches your specific fluid and duty cycle. Furthermore, we offer strong after-sales support and parts availability.
In conclusion, the AODD Pumps Working Principle is brilliantly simple. It combines power, safety, and versatility in one design. Understanding this principle helps maximize your investment. It also ensures smooth, reliable operation in your plant. For robust and efficient Air Operated Diaphragm Pumps, trust experts who value engineering excellence. Trust UK PUMP & EQUIPMENTS to deliver your ideal mixing and pumping solution.
