Coaxial Agitator Manufacturers in India: Engineering Excellence for Complex Mixing Challenges
UK PUMP & EQUIPMENTS stands as a leading Coaxial Agitator Manufacturers in India. We deliver world-class mixing solutions. Our coaxial agitators handle the toughest industrial applications. They combine two independent shafts. This unique design creates superior mixing efficiency.
Understanding Coaxial Agitators and Their Working Principle

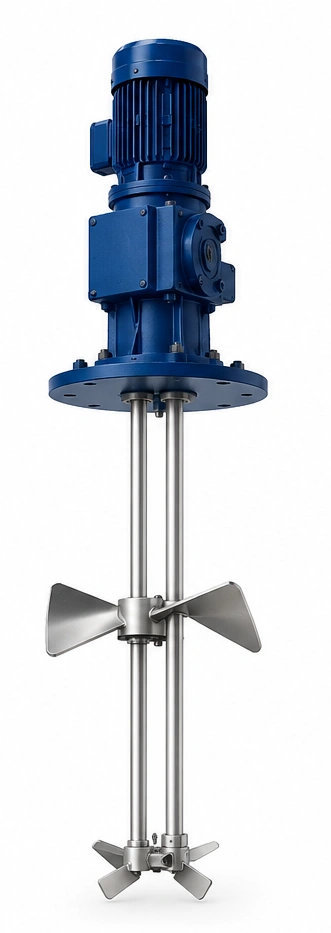

Coaxial Agitators represent a breakthrough in mixing technology. They feature two concentric shafts. The inner shaft rotates one agitator. The outer shaft rotates another agitator in opposite directions. This counter-rotation generates intense mixing action. Industrial Coaxial Agitators excel where standard mixers fail.
How Coaxial Technology Transforms Mixing Processes
The coaxial design solves multiple mixing problems. First, it eliminates dead zones inside tanks. Second, it handles high viscosity materials effectively. Third, it provides excellent heat transfer. Coaxial Agitator Mixer systems create powerful axial and radial flow patterns. These patterns ensure complete homogenization.
Get A Quote
Why Indian Industries Require Heavy Duty Coaxial Agitators
India’s manufacturing sector demands robust equipment. Heavy Duty Coaxial Agitators meet these demanding requirements. They operate continuously under harsh conditions. Our agitators withstand high temperatures and corrosive materials. The Indian chemical, pharmaceutical, and paint industries benefit enormously.
Key Applications Across Indian Manufacturing Sectors
Industrial Agitator Mixers from UK PUMP & EQUIPMENTS serve diverse sectors:
Chemical Industry: Mixing high viscosity polymers and resins
Pharmaceutical Manufacturing: Blending ointments and creams
Paint and Coatings: Homogenizing pigments and binders
Food Processing: Handling pastes and thick sauces
Cosmetics Production: Creating lotions and gels
Technical Parameters and Specifications of Our Coaxial Agitators
We engineer Coaxial Agitators with precision. Every component meets international standards. Below are our key technical specifications:
Drive System Capabilities
Motor Power Range: 0.5 kW to 160 kW
Speed Range: 5 RPM to 300 RPM
Speed Control: Variable Frequency Drive (VFD) optional
Voltage Options: 415V, 50Hz, 3 Phase (Indian standard)
Shaft and Impeller Specifications
Multi Shaft Agitators from our factory include:
| Parameter | Inner Shaft | Outer Shaft |
|---|---|---|
| Diameter | 25 mm to 150 mm | 50 mm to 300 mm |
| Material | SS316, SS304, Hastelloy | SS316, SS304, Hastelloy |
| Speed Direction | Clockwise | Counter-Clockwise |
| Impeller Types | Turbine, Propeller | Anchor, Helical Ribbon |
Viscosity Handling Capabilities
High Viscosity Agitators manage materials from 1 cP to 500,000 cP. This wide range covers water-like fluids to heavy pastes. Our Coaxial Mixing System maintains consistent performance across viscosity changes.
CFD Technology in Our Coaxial Agitator Design
Computational Fluid Dynamics (CFD) plays a vital role. We use CFD for every Coaxial Agitator Mixer design. This simulation technology predicts mixing patterns. It eliminates guesswork from engineering.
Benefits of CFD in Mixing Technology
CFD analysis provides multiple advantages:
Visualizes fluid flow inside the tank
Identifies dead zones before manufacturing
Optimizes impeller placement and design
Predicts power consumption accurately
Reduces testing time and costs
Ensures scale-up reliability
Our engineers simulate your actual process conditions. They adjust parameters virtually. This approach delivers perfect Process Agitators for your specific needs.
UK PUMP & EQUIPMENTS – Your trusted partner for Industrial Agitators, Tank Agitators, and complete Industrial Mixing Systems.
Design Features of Our Industrial Coaxial Agitators
Industrial Coaxial Agitators from UK PUMP & EQUIPMENTS incorporate advanced features. These features guarantee long service life.
Mechanical Seal Arrangements
We offer multiple sealing options:
Single mechanical seal for general applications
Double mechanical seal for hazardous materials
Cartridge seals for easy maintenance
Dry running protection systems
Bearing and Lubrication Systems
Tank Agitators require reliable bearings. Our coaxial units use heavy-duty roller bearings. These bearings handle axial and radial loads. Automatic lubrication systems extend bearing life. Oil bath lubrication reduces maintenance frequency.
Comparison: Coaxial Agitators Versus Conventional Mixers
Many manufacturers ask about differences. Here is a clear comparison:
| Feature | Conventional Agitators | Coaxial Agitators |
|---|---|---|
| Viscosity Range | Up to 50,000 cP | Up to 500,000 cP |
| Dead Zone Elimination | Partial | Complete |
| Power Efficiency | Moderate | High |
| Maintenance Frequency | Monthly | Quarterly |
| Mixing Time | Longer | Shorter by 40% |
Dual Shaft Agitators outperform single-shaft designs significantly. The counter-rotation creates turbulent flow in viscous fluids. This turbulence accelerates mixing dramatically.
Material Selection for Indian Operating Conditions
Indian plants face unique challenges. High ambient temperatures affect equipment. Humid conditions cause corrosion. Dusty environments damage components.
We select materials specifically for these conditions:
SS316 for corrosive chemical applications
SS304 for food and pharmaceutical use
Hastelloy C22 for extreme corrosion resistance
Duplex Steel for chloride-rich environments
Rubber lining for abrasive slurries
Installation and Integration with Existing Systems
Our Coaxial Agitator Manufacturers team supports complete installation. We provide top-entry, bottom-entry, and side-entry configurations. Tank sizes range from 100 liters to 100,000 liters.
Mounting Configurations
Industrial Agitator Mixers fit various tank types:
Open top tanks with bridge mounting
Closed pressure vessels with flange mounting
Mobile tanks with portable mounting
Underground mixing tanks with custom supports
Energy Efficiency and Cost Benefits
Indian industries focus on operational costs. Our Coaxial Agitators reduce energy consumption significantly. The dual-shaft design transfers power efficiently. Each motor works optimally for its viscosity range.
.Power Savings Calculation
Consider a typical paint mixing application. A conventional agitator uses 30 kW. Our Coaxial Agitator Mixer uses only 22 kW. This saves 8 kW per hour. Over 6,000 operating hours, this saves 48,000 kWh. At ₹8 per kWh, savings reach ₹3,84,000 annually.
Maintenance and Service Support Across India
UK PUMP & EQUIPMENTS provides pan-India service support. Our service centers operate in major industrial cities:
Mumbai and Pune (Western Region)
Chennai and Bengaluru (Southern Region)
Delhi and Faridabad (Northern Region)
Kolkata and Jamshedpur (Eastern Region)
Ahmedabad and Vadodara (Gujarat Region)
Preventive Maintenance Schedule
Heavy Duty Coaxial Agitators need regular checks:
Weekly: Lubrication levels and seal inspection
Monthly: Bearing temperature monitoring
Quarterly: Shaft alignment verification
Yearly: Complete overhaul and parts replacement
Quality Assurance and Testing Procedures
Every Coaxial Agitator undergoes rigorous testing. Our quality protocol includes:
Material certificate verification (EN 10204 3.1)
Dye penetrant testing for welds
Dynamic balancing of shafts
No-load run test for 4 hours
Full-load performance test with actual fluids
Noise and vibration measurement
Hydrostatic testing for sealed units
Custom Engineering for Unique Applications
Standard designs do not fit all needs. We offer Custom Coaxial Mixing System engineering. Our team modifies:
Shaft lengths for deep tanks
Impeller shapes for specific rheology
Seal materials for aggressive chemicals
Drive configurations for explosion-proof areas
Control systems for automated plants
Safety Features and Compliance Standards
Safety remains our top priority. Our Industrial Coaxial Agitators include:
Emergency stop systems
Overload protection devices
Temperature sensors for bearings
Vibration monitoring probes
Lockout-tagout provisions
ATEX certification for hazardous areas
Indian Regulatory Compliance
Our equipment meets all Indian standards:
IS 9079 (Agitator specifications)
ISO 9001:2015 quality management
OHSAS 18001 safety requirements
Factory Act regulations for moving parts
Selection Guide for Coaxial Agitator Buyers
Choosing the right Coaxial Agitator Manufacturers requires careful evaluation. Follow this step-by-step guide:
Step 1: Define Your Material Properties – Measure viscosity at operating temperature. Note density and solid content. Check chemical compatibility with metals.
Step 2: Determine Mixing Objectives – Identify your desired outcome. Do you need blending, dispersion, or heat transfer? Each goal requires different impeller designs.
Step 3: Specify Tank Geometry – Provide tank diameter, height, and bottom shape. Note baffle positions and internal obstructions.
Step 4: Calculate Power Requirements – Our engineering team performs scale-up calculations. We use proven mathematical models. These models predict power accurately.
Future Trends in Coaxial Agitator Technology
The mixing industry evolves continuously. Coaxial Agitator Manufacturers like us embrace new technologies:
Smart Agitators with IoT Integration
Modern Industrial Coaxial Agitators connect to plant networks. Sensors stream real-time data. Operators monitor performance remotely. Predictive algorithms alert before failures occur.
Energy Recovery Systems
New designs capture braking energy. This energy returns to the power grid. Such systems reduce operating costs further.
Advanced CFD Capabilities
Computational power increases every year. Our CFD models now simulate multiphase flows. They predict particle distribution accurately. They model heat transfer precisely.
How to Order from UK PUMP & EQUIPMENTS
Follow these simple steps:
Share your process details – Fluid type, tank size, temperature, and desired mixing time.
Receive a CFD proposal – We simulate your mixing and send results.
Approve the design – Check 3D drawings and technical specifications.
Manufacturing begins – You get weekly progress photos.
Factory acceptance test – Visit Ghaziabad to see your agitator running.
Dispatch and installation – Our team guides you remotely or on-site.
We handle everything from design to commissioning. You focus on your core business.
Partner with Leading Coaxial Agitator Manufacturers
UK PUMP & EQUIPMENTS delivers excellence in Coaxial Agitator technology. Our location-based service supports Indian industries completely. We combine engineering expertise with practical solutions.
Every Coaxial Agitator Mixer leaves our factory tested and certified. Our Industrial Coaxial Agitators perform reliably for decades. Choose us for your Heavy Duty Coaxial Agitators needs.
Contact our technical sales team today. Discuss your mixing challenges with experts. Receive a customized quotation within 48 hours. Experience the difference that engineered excellence makes.
UK PUMP & EQUIPMENTS – Your Trusted Coaxial Agitator Manufacturers in India
Frequently Asked Questions
Yes. Our coaxial agitators automatically adjust to viscosity shifts. The dual shafts maintain uniform mixing from low to high viscosity without manual intervention.
We engineer coaxial agitators for tanks up to 100,000 liters. Larger custom sizes available for Indian chemical and paint plants.
Absolutely. Our engineers visit your facility across India. We offer complete installation guidance and operator training at no extra cost.
CFD simulates your fluid flow virtually. We identify dead zones and optimize impeller design. You get guaranteed performance without physical trials.
We provide 18 months from dispatch or 12 months from commissioning. Coverage includes manufacturing defects and seal failures.
