Heavy Duty Agitators
Heavy Duty Agitator Manufacturers
Heavy Duty Agitators – Engineered for Indian Industries
At UK PUMP & EQUIPMENTS, we are leading Heavy Duty Agitators Manufacturers in India. Our agitators handle tough mixing tasks with ease. They work in chemicals, pharmaceuticals, and wastewater treatment. We build each unit for long life and high output. You get reliable performance every day.
Why Choose Heavy Duty Agitators Manufacturers in India?
Indian industries need robust mixing solutions. Extreme temperatures, abrasive materials, and continuous operation demand strength. Heavy Duty Agitators Manufacturers like us understand these challenges. We design equipment that never fails. Our agitators reduce downtime. They also cut maintenance costs. You gain consistent product quality.
Furthermore, local manufacturing offers faster delivery. You avoid long import delays. We provide on-site support across India. Spare parts reach you quickly. This keeps your plant running smoothly. Our team trains your staff too. They learn proper operation and safety.
Get A Quote
Our Core Philosophy as Heavy Duty Agitator Manufacturer
As a trusted Heavy Duty Agitator Manufacturer, we focus on engineering precision. Every agitator starts with your process needs. We analyze viscosity, density, and tank geometry. Then we select the right impeller, shaft, and motor. This custom approach ensures maximum efficiency.
Consequently, our agitators use less power. They achieve uniform mixing in less time. You save energy and money. We also test each unit before dispatch. Our quality checks include vibration analysis and performance trials. Only perfect agitators leave our factory.
Key Technical Parameters & Capabilities
Our Heavy Duty Mixer Agitator range covers many industries. Below are our standard specifications. Custom sizes are always available.
Power and Speed Range
| Parameter | Value Range |
|---|---|
| Motor Power | 0.5 kW to 250 kW |
| Agitator Speed | 10 RPM to 1500 RPM |
| Speed Control | VFD (Variable Frequency Drive) optional |
| Torque Output | Up to 50,000 Nm |
We use premium motors from Siemens, ABB, or Crompton. Gearboxes come from Flender or Bonfiglioli. This combination delivers smooth power transmission. Your agitator runs for decades without major repairs.
Shaft and Impeller Design
Shaft Diameter: 25 mm to 200 mm
Shaft Material: SS316, SS304, Carbon Steel, Hastelloy, Duplex Steel
Impeller Types: Pitched Blade, Turbine, Anchor, Propeller, Hydrofoil, Gate
Impeller Diameter: 200 mm to 3000 mm
Each shaft is dynamically balanced. This prevents wobbling at high speeds. Impellers are laser-cut for perfect symmetry. We weld them with TIG process. No weak points exist. Your Heavy Duty Industrial Mixer handles viscous pastes and slurries easily.
Sealing and Bearing Systems
Seal Options: Mechanical Seal, Packed Gland, Magnetic Drive
Seal Material: Silicon Carbide, Carbon, Teflon, Viton
Bearings: Double-row spherical roller bearings (SKF or FAG)
Bearing Housing: Cast iron with oil lubrication
These features prevent leakage. Hazardous chemicals stay inside the tank. Your workplace remains safe. Bearings last over 50,000 hours. You replace them rarely.
Vessel Integration
Our Reactor Vessel Agitator fits any tank. We provide top-entry, side-entry, and bottom-entry models. Flange connections match your nozzle size. Baffles can be added for better mixing. We also supply portable agitators for drums and IBCs.
CFD in Mixing Technology – Precision by Simulation
We use Computational Fluid Dynamics (CFD) for every large agitator. CFD predicts how fluids move inside your vessel. This eliminates guesswork. You get the best design before manufacturing starts.
How CFD Improves Your Mixing Process
First, we create a 3D model of your tank. Then we input fluid properties like viscosity and density. The software simulates impeller rotation. It shows velocity profiles, shear rates, and dead zones.
Consequently, we optimize impeller placement. We adjust blade angles and clearance from the bottom. This ensures no settling occurs. Solids remain suspended. Heat transfer improves. Reactions complete faster.
Moreover, CFD reduces power consumption. We identify inefficient flow patterns. Then we redesign impellers to use less energy. Some clients save 30% on electricity bills. CFD also predicts erosion points. We reinforce those areas with harder materials.
Real-World CFD Example
For a paint manufacturer, we simulated a 10,000-liter vessel. The original design had a dead zone near the bottom. Pigments settled there. After CFD analysis, we changed the lower impeller to a hydrofoil type. We also added a small side baffle. Settling stopped completely. Mixing time dropped from 45 to 28 minutes. The client praised our High Efficiency Agitator.
UK PUMP & EQUIPMENTS – Your trusted partner for Industrial Agitators, Tank Agitators, and complete Industrial Mixing Systems.
Heavy Duty Agitator Company in Ghaziabad – Your Local Manufacturing Hub
UK PUMP & EQUIPMENTS operates from Ghaziabad, Uttar Pradesh. This location serves Delhi NCR and all northern states. We are a leading Heavy Duty Agitator Company in Ghaziabad. Our factory spans 25,000 square feet. We have CNC machines, balancing equipment, and a dedicated CFD lab.
Why Ghaziabad? The city has excellent transport links. Highways and railways connect us to major industrial belts. We deliver to Punjab, Haryana, Rajasthan, and Uttarakhand within 48 hours. Export orders reach Nepal and Bangladesh quickly.
Furthermore, being in Ghaziabad lowers your costs. No long freight charges from Mumbai or Chennai. Our prices beat southern competitors by 15%. You also get direct access to our engineers. Visit our facility anytime. See how we build your agitator.
Quality Certifications
ISO 9001:2015 certified
ATEX compliant for explosive environments
CE marked for European standards
Indian Boiler Regulations (IBR) for pressure vessels
Applications Across Indian Industries
Our Heavy Duty Mixing Equipment serves diverse sectors. Below are key applications.
Chemical Processing
Chemical plants need corrosion-resistant agitators. We use Hastelloy and Teflon-coated parts. Our agitators mix acids, alkalis, solvents, and polymers. Side-entry models work in large storage tanks. Top-entry units handle reactors. You get uniform pH and temperature.
Pharmaceuticals
Pharma mixing requires sterile conditions. Our Heavy Duty Mixer Agitator comes with polished SS316L shafts. Mechanical seals prevent contamination. Low-shear impellers protect delicate crystals. We comply with GMP guidelines. Validation documents are provided.
Wastewater Treatment
Effluent treatment plants use agitators for equalization and flocculation. Our units run 24/7 in humid environments. The motor enclosure is IP55 rated. Bearings resist rust. Impellers chop rags and fibrous solids. You achieve clear discharge water.
Paints and Coatings
High-viscosity paints need powerful agitation. Our anchor impellers scrape the tank wall. Dissolver discs break agglomerates. Variable speed helps you control shear. Color matching becomes perfect. No streaks or lumps remain.
Food and Beverage
Stainless steel agitators mix syrups, sauces, and dairy products. FDA-approved seals are standard. The smooth finish prevents bacterial growth. CIP (Clean-in-Place) compatibility is included. You switch between batches quickly.
Mineral Processing
Ore slurries are abrasive. Our Heavy Duty Industrial Mixer uses rubber-lined impellers. Shafts get hardened coating. We oversize gearboxes for shock loads. Agitators keep solids suspended in leaching tanks. Recovery rates increase.
Advantages of Choosing UK PUMP & EQUIPMENTS
Custom Engineering
Every agitator is unique. We do not sell off-the-shelf products. First, we study your process. Then we design accordingly. You receive drawings for approval. Changes are free until you are satisfied.
Fast Delivery
Standard agitators ship in 3 weeks. Custom units take 5 to 6 weeks. Express delivery is possible for urgent needs. We stock common motors and gearboxes. Shafts and impellers are made in-house. No waiting for subcontractors.
Lifetime Support
We offer a 2-year warranty on all agitators. After that, we support you indefinitely. Spare parts are always available. We also repair old agitators from any brand. Our service team visits your site within 72 hours anywhere in India.
Competitive Pricing
Because we manufacture in Ghaziabad, overheads are low. We source steel locally. Labor costs are reasonable. These savings pass to you. Request a quote. Compare with any other Heavy Duty Agitator Manufacturer. You will see the difference.
Transitioning to High Efficiency – CFD Benefits Recap
Let us summarize how CFD makes your agitator better. Transition words help connect these ideas:
Firstly, CFD identifies dead zones that waste time.
Secondly, it optimizes impeller design for lower power draw.
Thirdly, the simulation predicts erosion, so we add protection.
In addition, CFD verifies that solids stay suspended at minimum speed.
Finally, you receive a performance guarantee based on simulation results.
Therefore, our agitators outperform competitors. You get higher throughput. Your energy bill decreases. Product quality becomes repeatable.
Technical Comparison – Standard vs. Heavy Duty Agitator
| Feature | Standard Agitator | Our Heavy Duty Agitator |
|---|---|---|
| Shaft Thickness | Thin (prone to bending) | Thick with stiffener rings |
| Bearing Type | Single row | Double row spherical |
| Impeller Material | Cast iron | SS316 or Hastelloy |
| Seal Life | 2,000 hours | 8,000+ hours |
| Max Viscosity | 10,000 cP | 500,000 cP |
| Warranty | 6 months | 2 years |
Clearly, heavy duty construction pays off. You avoid frequent breakdowns. Production never stops.

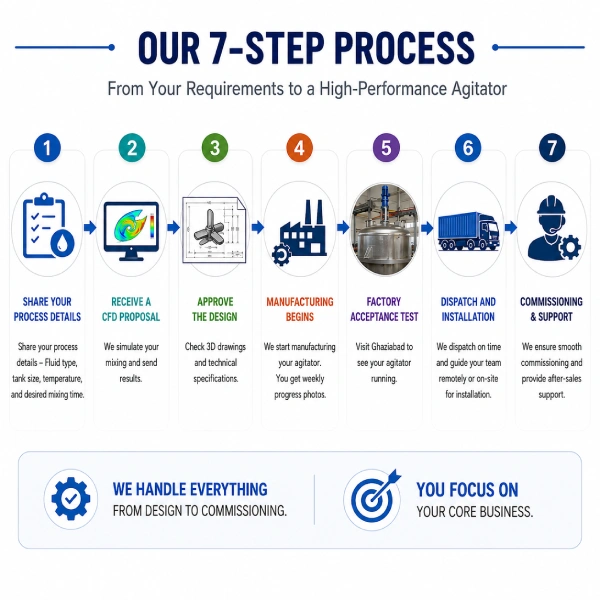

How to Order from UK PUMP & EQUIPMENTS
Follow these simple steps:
Share your process details – Fluid type, tank size, temperature, and desired mixing time.
Receive a CFD proposal – We simulate your mixing and send results.
Approve the design – Check 3D drawings and technical specifications.
Manufacturing begins – You get weekly progress photos.
Factory acceptance test – Visit Ghaziabad to see your agitator running.
Dispatch and installation – Our team guides you remotely or on-site.
We handle everything from design to commissioning. You focus on your core business.
Contact Us Today
Stop settling for weak mixers. Upgrade to genuine heavy duty performance. UK PUMP & EQUIPMENTS – your reliable Heavy Duty Agitators Manufacturers in India.
Request a free CFD analysis now. Send your mixing challenge. We will solve it with science and skill. Remember, every great process starts with the right agitator. Choose wisely. Choose UK PUMP.
Frequently Asked Questions
Our agitators handle up to 500,000 centipoise. For higher viscosities, we use anchor or helical ribbon impellers.
Yes. Our engineers travel nationwide. Installation costs are quoted separately. Basic instructions are free.
Absolutely. We measure your tank nozzle. Then we design a flange adapter. No tank modification is needed.
Standard custom agitators take 5 weeks. Rush orders take 3 weeks with extra charges.
Yes. We export to Nepal, Bangladesh, Sri Lanka, and Africa. Crating meets export standards. We handle all documentation.
